Roland DG

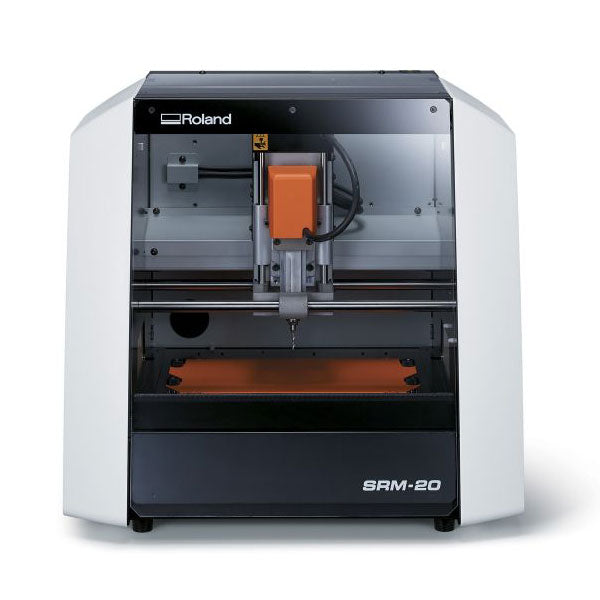

SRM-20 mini 3D CNC

SRM-20 mini 3D CNC

Regular price €3,800.00 EUR
Regular price Sale price €3,800.00 EUR
Sale Sold out
Shipping calculated at checkout.

The Roland SRM-20 is a small, high precision CNC (Computer Numerical Control) router designed to work on rigid materials such as plastic, wood, wax and resin. The machine is ideal for the production of mass-produced parts, rapid prototyping and the production of objects with a complex shape, and in a small way it is a real milling machine that works in standard ISO language, excellent for the educational sector.

The SRM-20 offers a working area of ​​203 x 152 x 60 mm and a positioning accuracy of ± 0.01 mm, which allows for extremely precise and detailed machining. The milling machine is capable of working with a variety of tools, including ball, spiral and point cutters, which allows you to produce high quality parts with smooth and precise finishes.

The machine features an intuitive user interface that allows you to easily configure machining parameters and upload CAD/CAM drawing files. The dedicated software on board the machine allows you to create 3D drawings, import drawing files from other software and configure the machining settings in a simple and intuitive way thanks to the CAM software supplied.

The SRM-20 is equipped with advanced safety features, such as the collision detection system which immediately stops machining in the event of accidental contact.

In summary, Roland's SRM-20 milling machine is a reliable, accurate and easy-to-use machine, offering maximum precision in machining high-quality parts. Its flexibility and the wide range of materials it can process make it an ideal option for a multitude of applications.

Workable materials Resins, chemical wood, modeling wax, PCB substrates and other non-metallic materials.
Travel of the X, Y and Z axes X, Y and Z: 203.2 x 152.4 x 60.5 mm
Working area 232.2(X)x156.6(Y)mm
Distance of the collar from the work surface Max. 130.75mm
Loadable material weight 2kg
Axes movements Stepper motor
Operating speed 6 – 1800mm/min
Software resolution 0.01mm/step (RML-1) / 0.001mm/step (NC code)
mechanical resolution 0.000998594mm/step
Spindle 380 type DC motor
Spindle rotation speed 3000 - 7000rpm
Tool hooking Dedicated collars
interface USB
commands RML-1, NC code
Diet Machine: DC 24V, 2.5A / Dedicated AC adapter: AC 100-240V ± 10%, 50/60Hz
Consumption 50W approx.
Acoustic emission level Operating: 65dB(A) or less / Standby: 45dB(A) or less
External dimensions 451.0 (W) x 426.6 (D) x 426.2 (H) mm
Weight 19.6kg
Operating environment Temperature: 5 to 40°C / Humidity: 35 to 80% (non-condensing)
Accessories included Adapter, power cord, USB cable, collar, tool, screw set, wrench, hex key, double-sided tape, user manual, locating pins, start-up sheet, and initial information sheet.

System requirements
Operating system (OS) Windows 7/8/8.1 (32-bit/64-bit edition)*

Intel® Core 2 duo or higher (Core i5 or higher recommended)

Memory (RAM) 1GB (2GB or higher recommended)
Video card and monitor 1280 x 1024 or higher resolution recommended
Free hard disk space 100MB or higher recommended
Other requirements

Internet connection and web browser, Internet Explorer ver. 10 or higher recommended.
