MDX-50 3D modeler
MDX-50 3D modeler

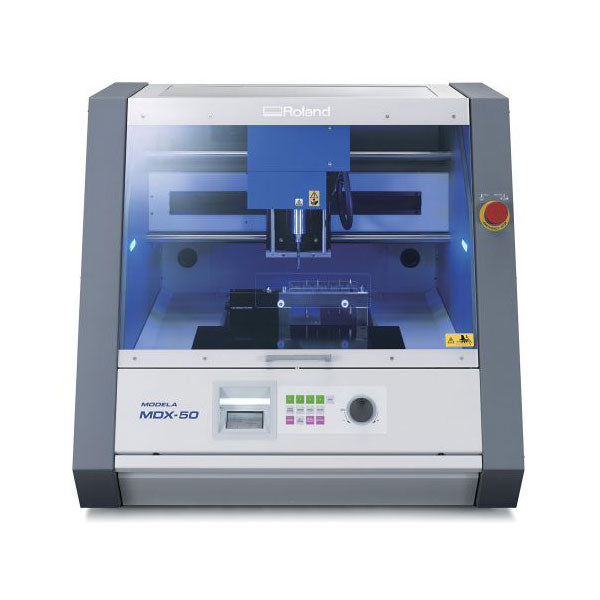

The MDX-50 is a high-quality CNC (Computer Numerical Control) milling machine manufactured by the well-known Japanese company Roland DG.
This benchtop machine has been specially designed to work with a variety of materials, including plastics, wood, resin, ceramics, wax, and even soft metals like aluminum.
With a working area of 400 x 305 x 135 mm and a positioning accuracy of ± 0.01 mm, the MDX-50 milling machine offers great flexibility and precision in machining parts of any shape or size.

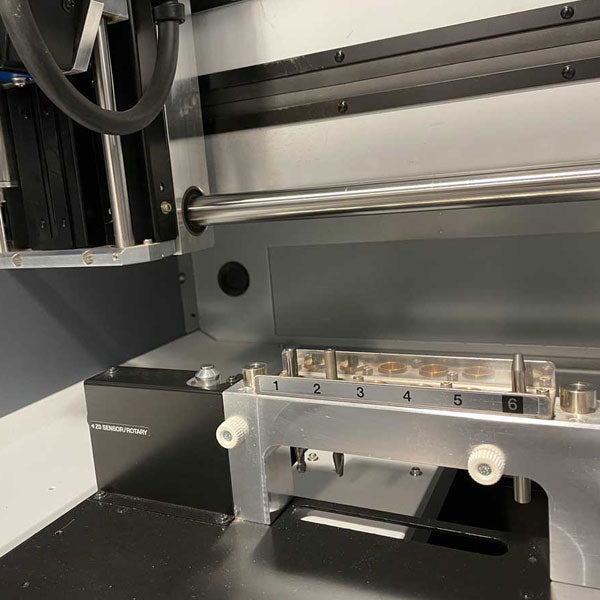

MDX-50 is equipped with a sophisticated 5-position automatic tool change system, to work continuously, and create production cycles, without having to stop the work to change the tool.
Thanks to the use of simultaneous 4-axis milling technology, the machine can work with very complex angles and irregular surfaces, guaranteeing an optimal machining quality.
The MDX-50 features an intuitive user interface that allows you to easily configure machining parameters, without requiring advanced programming knowledge. In addition, the machine is equipped with a variety of safety features to ensure maximum operator protection during use.
The MDX-50 milling machine is supplied with a range of accessories and machining tools, including the milling spindle, automatic tool change system and dedicated CAD/CAM software, all included in the price. The 4th rotary axis is optional as are the tool holder grippers for automatic tool change.
In summary, Roland DG's MDX-50 Milling Machine is a versatile, accurate, and easy-to-use machine that offers a wide range of machining options for multiple applications, from prototyping to the production of high-quality finished parts.
Accessories included : Power cord, USB cable, user manual, Roland CD-ROM
DG Software Package, calibration pin, hex key, screwdriver
hex, wrench, tool holder (6x6mm, 1x4mm, 1x3mm),
positioning tool, Z0 sensor.
Technical characteristics of MDX-50
|Working area||400 x 305mm.|
|Z axis travel||135mm.|
|Spindle||From 4500 to 15,000 rpm, brushless|
|Diet||110 - 240 volts|
|Workable materials||Modeling resins, aluminium, brass, plexiglass, wood,…|
|Surface detection to be engraved||Automatic in Z|
|Automatic tool change||5 tools + 1 for calibration|
