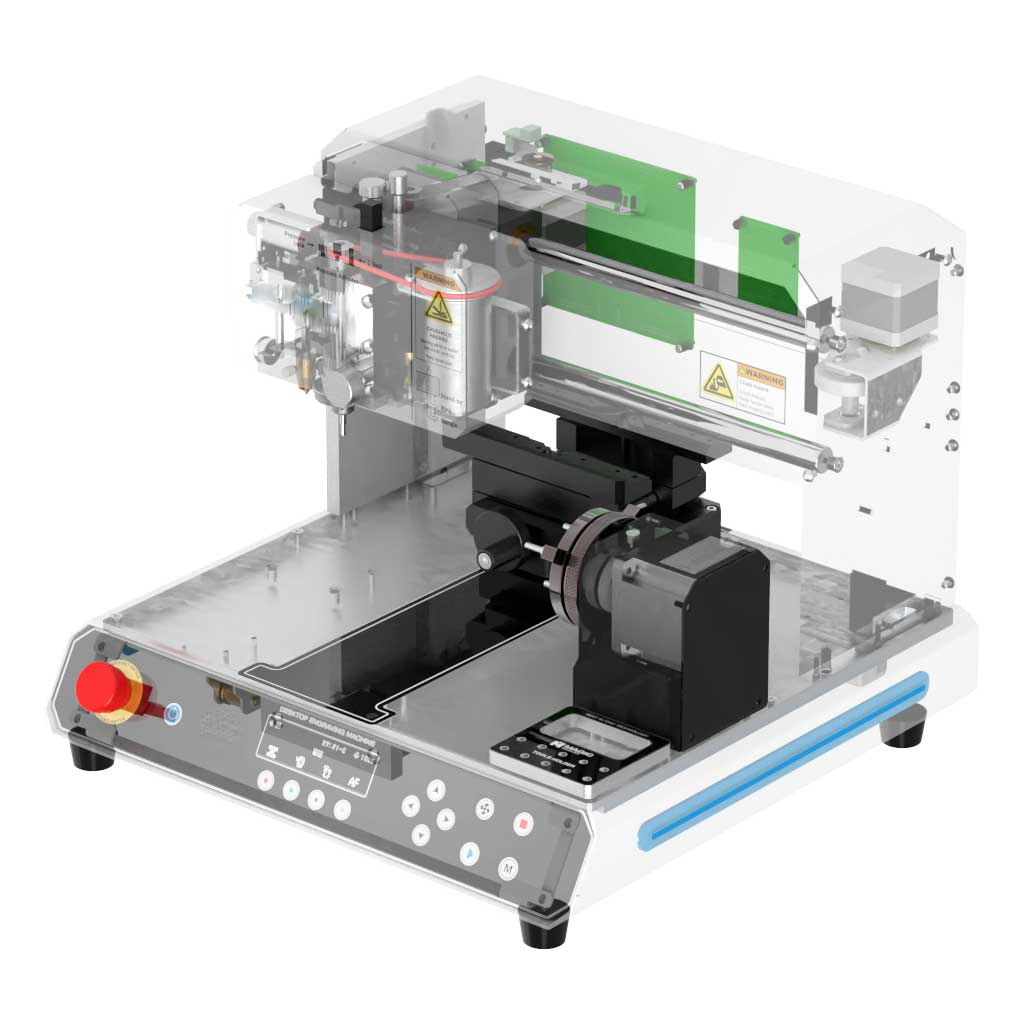

MAGIC E7 – Jewelry, Ring, Pen, and Plate Engraving and Milling Machine

MAGIC E7 is a compact professional machine designed for engraving, marking, milling, and cutting jewelry, plates, promotional items, and metal objects. Thanks to the combination of an integrated flat vise and rotary device, it offers a complete solution for engraving both flat surfaces and cylindrical objects such as rings, bracelets, and pens.

Ideal for jewelers, goldsmith workshops, engravers, and personalization shops, MAGIC E7 allows for professional engraving on gold, silver, platinum, brass, aluminum, stainless steel, and many other materials. It can also mill and cut precious metals, plexiglass, wood, plastics, and modeling waxes.

Engraving can be done by scratching with a diamond tip or by material removal using cylindrical, conical, or spherical cutters. The machine supports numerous processes including engraving text, logos, rasterized photographs, cutting, milling, drilling, 2.5D engraving, and decorative work for jewelry.

The integrated camera and laser pointer simplify the positioning of the engraving directly on the object. The operator can preview it on the software, check the exact working point, and easily correct the position before starting the process.

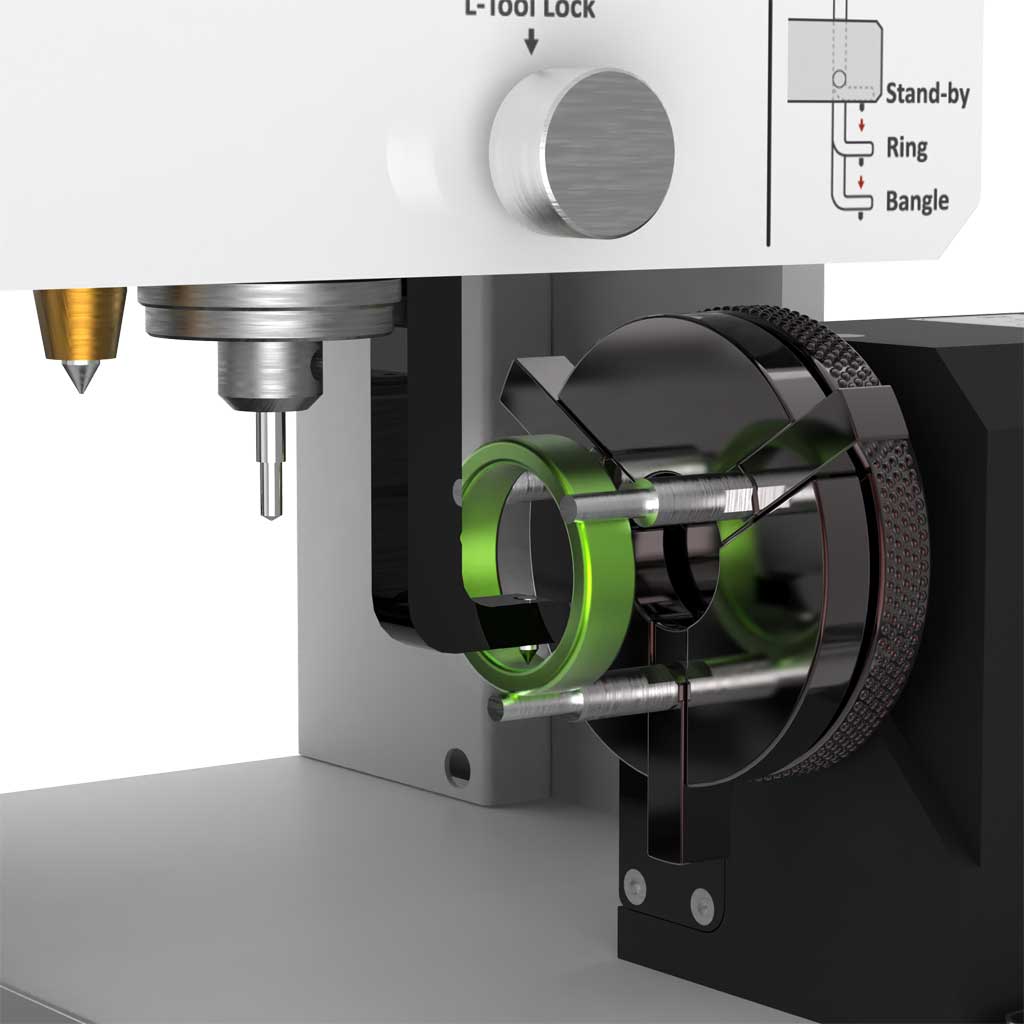

Thanks to the built-in rotary device, MAGIC E7 can engrave both the exterior and interior of rings and bracelets, offering a particularly appreciated solution in the jewelry sector for rapid personalization directly at the sales counter.

The floating head with adjustable pressure ensures uniform results even on curved or slightly uneven surfaces, while the powerful 15,000 rpm spindle guarantees high performance in cutting and milling operations.

For use in public environments, an optional protective cover is available, which improves operational safety and makes the machine even more suitable for use in jewelry stores, gift shops, and personalization points of sale.

Main features

• Flat and rotary engraving in one machine
• Internal and external engraving of rings and bracelets
• Diamond tip engraving and CNC milling
• Integrated camera and laser pointer for positioning
• Cutting and processing of precious metals, brass, aluminum, wood, and plexiglass
• USB and Bluetooth connection
• MagicEngrave software for Windows included
• Integrated LCD display
• Floating head with adjustable pressure
• High-speed spindle up to 15,000 rpm



Technical specifications

• Working area: 112 × 100 × 39 mm
• Max object height: 60 mm
• Max ring and bracelet diameter: 80 mm
• Spindle: 15,000 rpm
• Bluetooth 5.0
• Machine dimensions: 402 × 376 × 352 mm
• Weight: 26 kg
• Power supply: 100-240 V
• Consumption: 58 W
• PC Windows connection via USB
• Tablet connection via Bluetooth

Included equipment

• Diamond tip tool
• Diamond tip tool for engraving inside wedding bands and bracelets
• 2 cylindrical cutters
• MagicEngrave software for Windows
• Spare spindle belts
• USB cable
• Power supply


MAGIC E7 is the professional solution for those who want to engrave, personalize, mill, and cut jewelry and promotional items directly in their workshop or point of sale, with maximum precision and ease of operation.
