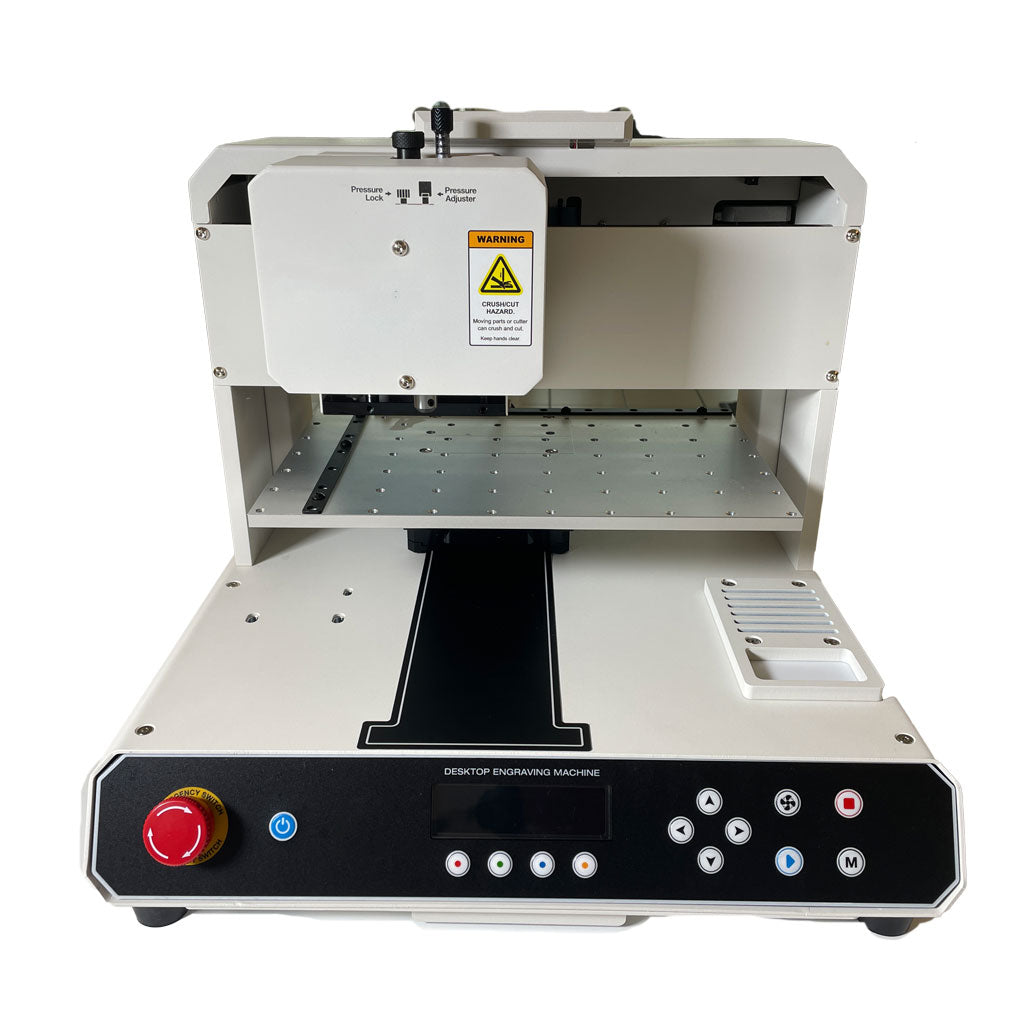

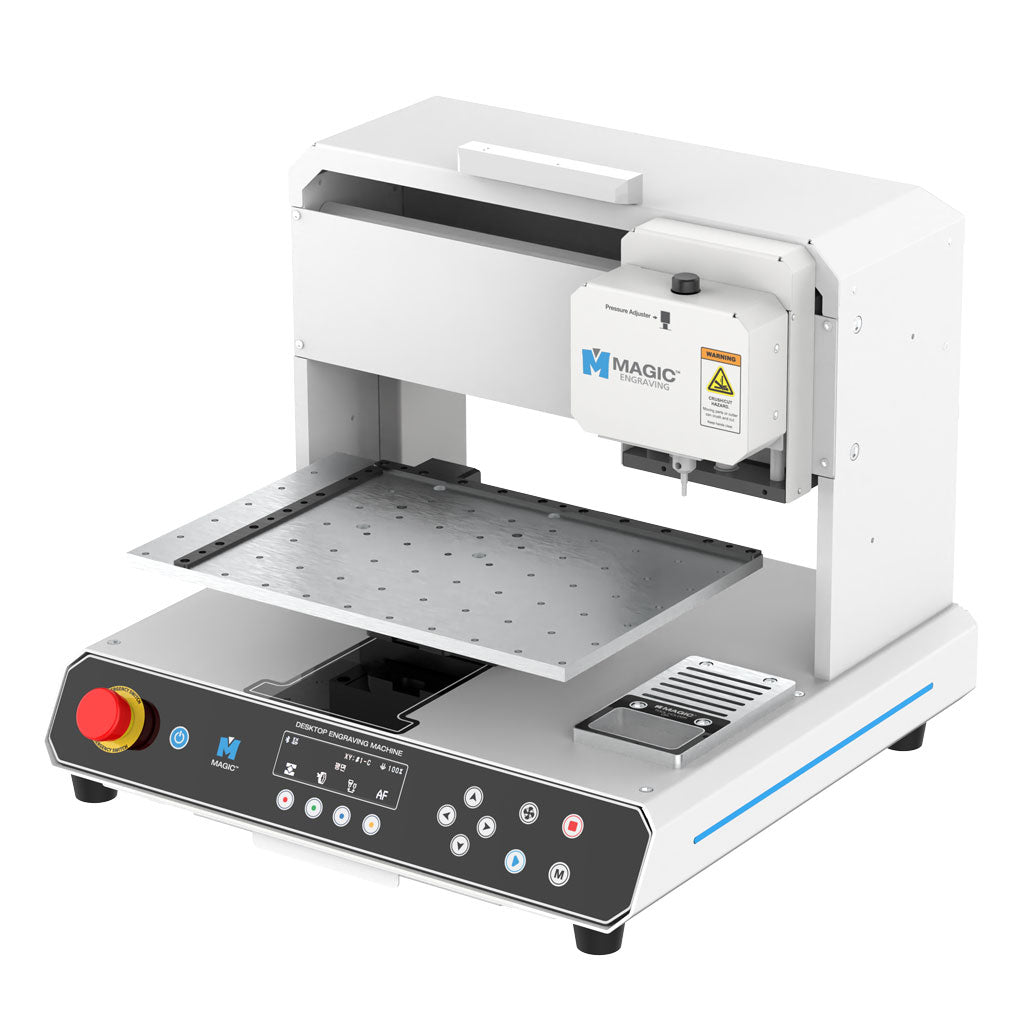

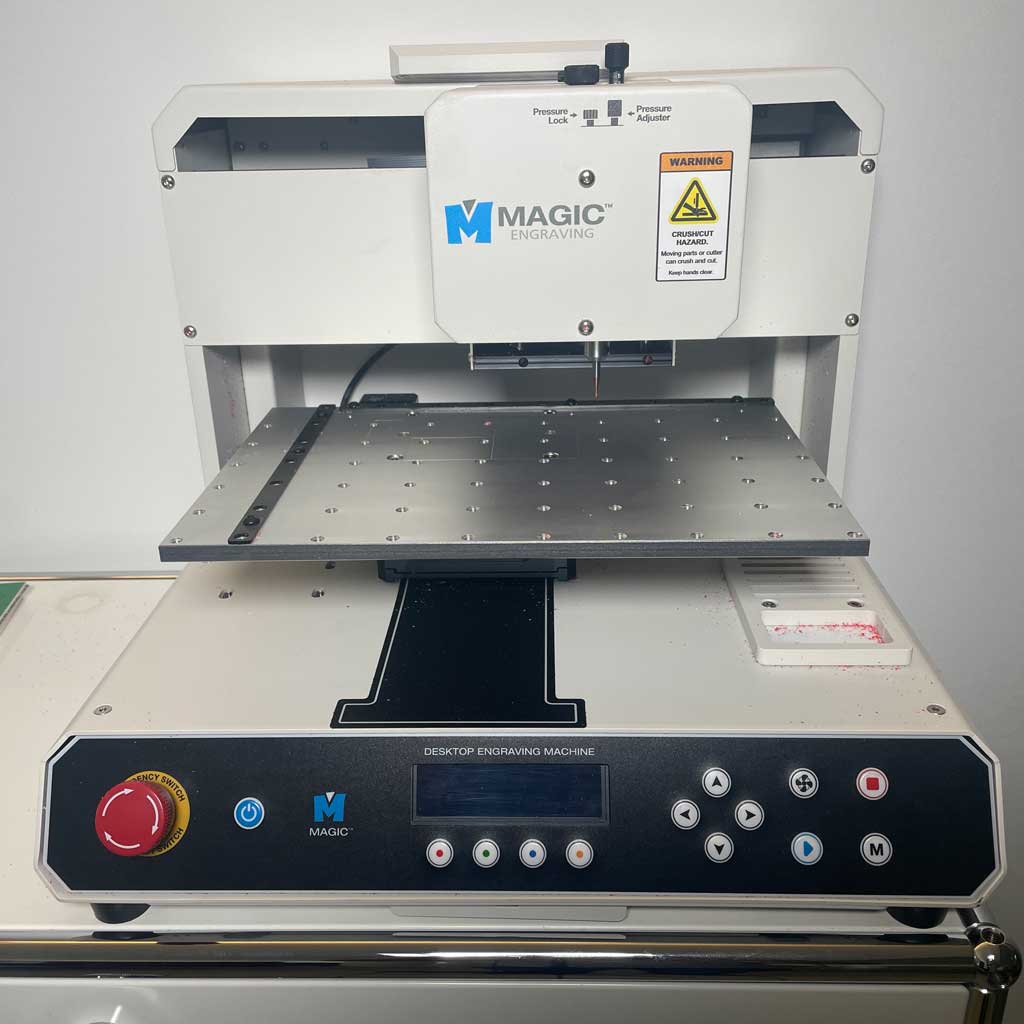

MAGIC E4 (ME4) is a cnc machine for engraving writings , drawings and photos on metal plates and objects using a diamond tool, the machine is also perfect for milling and cutting non-ferrous metals, plastic and wood.
The machine scratches any metal with a diamond tip, the engraving is performed both flat and on curved or irregular surfaces. Thanks to the ME4 spindle, it mills and pierces the material with conical, cylindrical and spherical tools.
Working area 216x158x39 mm.
Sensor for automatic height and inclination measurement of the surface to be engraved.
Sensor for measuring the length of the tool
Video camera for accurate and interactive positioning of the engraving on the object
Overall dimensions 402x376x352 mm.
Weight 25 kg. Consumption 46W.
Floating spindle for scribing and milling with 15,000 rpm
Windows software supplied to drive the machine from a PC via USB port
LCD display
Bluetooth
The ME4 engraving machine is perfect for engraving tags, tags and for customizing components and products.
The price includes remote training and after-sales technical assistance.
