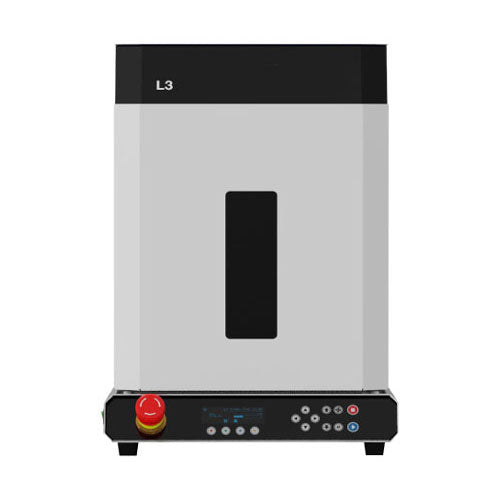

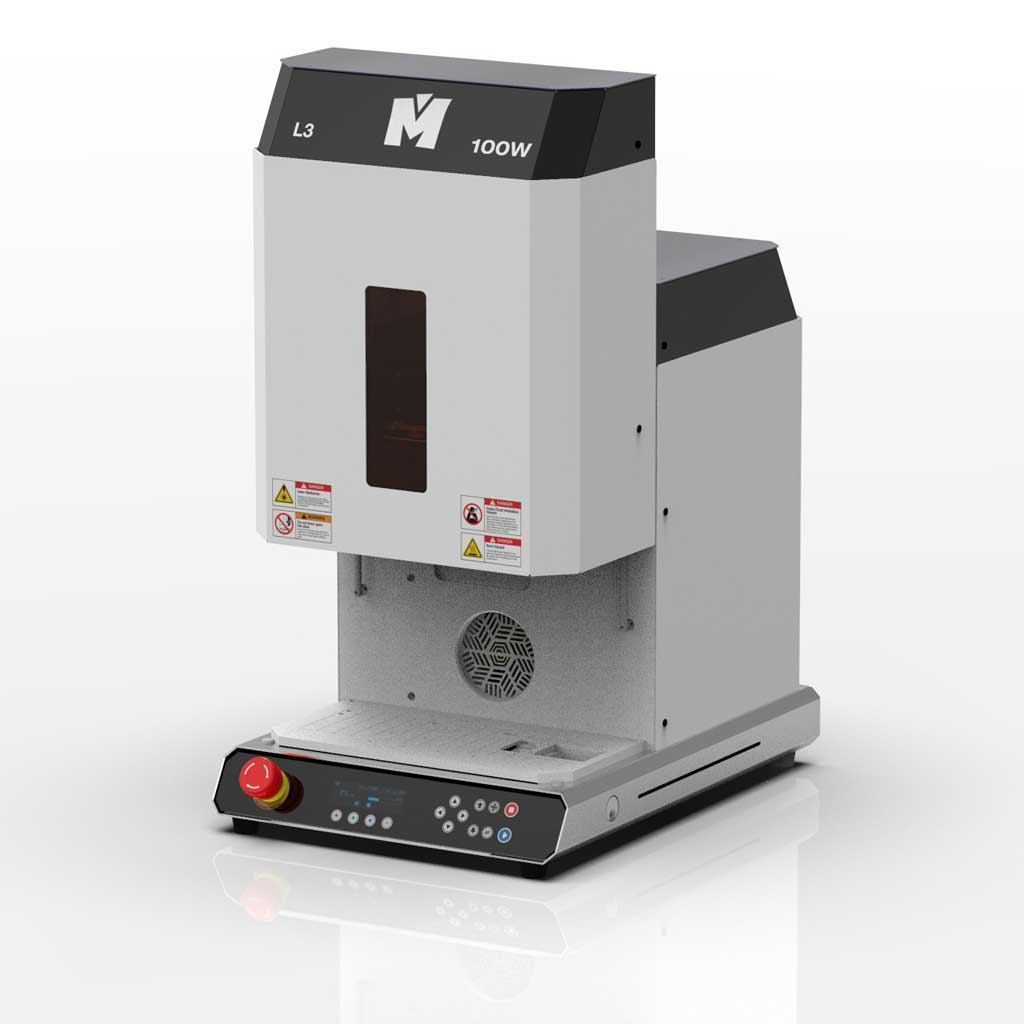

L3 Fiber Laser

High speed and precision L3 Fiber Laser to engrave writing, drawings and photos on nameplates, components, jewelery and objects.

Configurable laser power from 20W/30W/60W/100W, wavelength 1064 nm, spot quality M2 <1.3, speed 4,000 mm/s, frequency 25-600kHz. Working area 110x1005 mm. Dimensions 404x590x556 mm, weight 44 kg. Automatic closing door. Consumption 290W.

Autofocus and internal camera.

Pilotable with USB connection from Windows computer, using the supplied software.

Reading of the data to be engraved from CSV files, integrated remote control software, software operation also in the background to drive the laser directly from the production management system.

On/off external vacuum system (the vacuum cleaner is optional).

Jewelery KIT (Optional) : Laser Clamp + Cutting table + Rotary axis to engrave internal and external rings.

Delivery approximately 20 days
