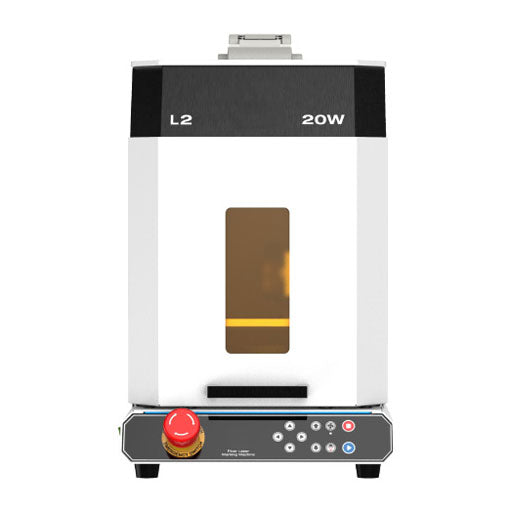

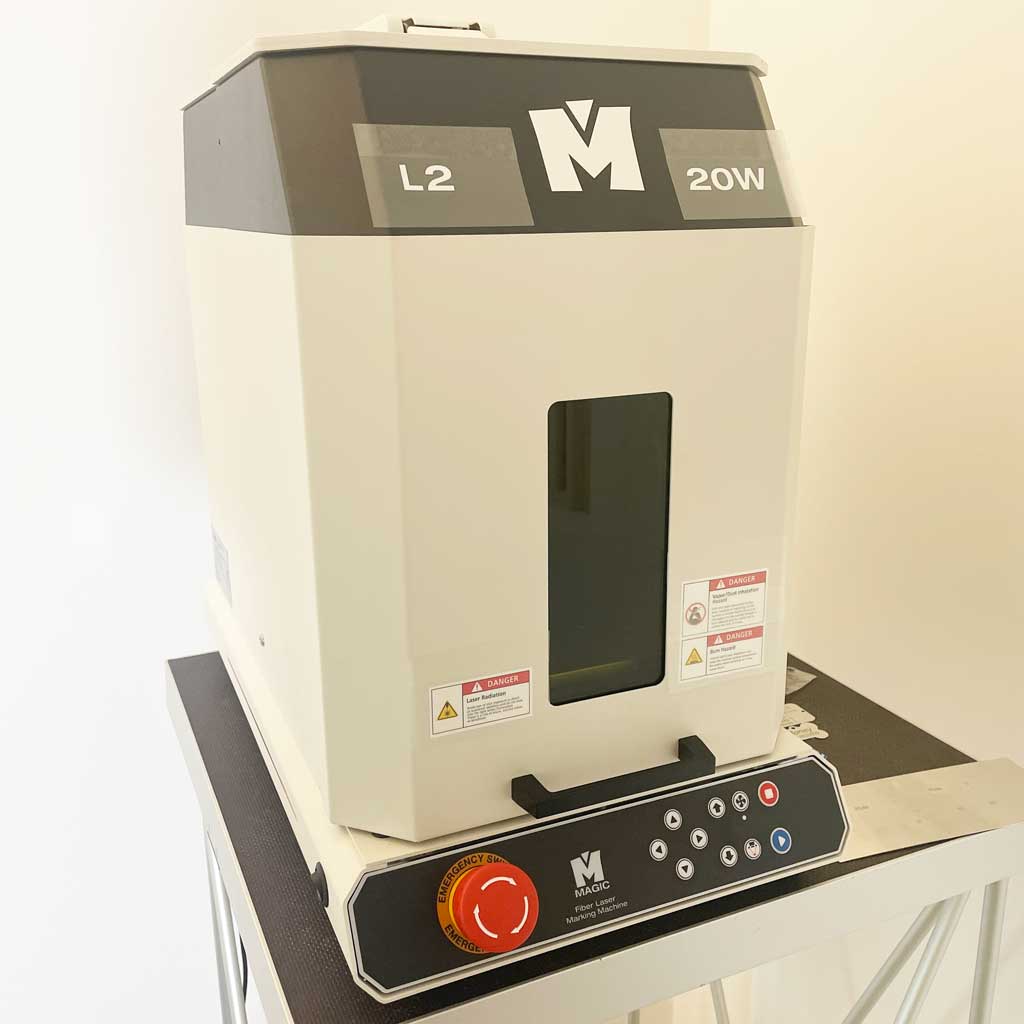

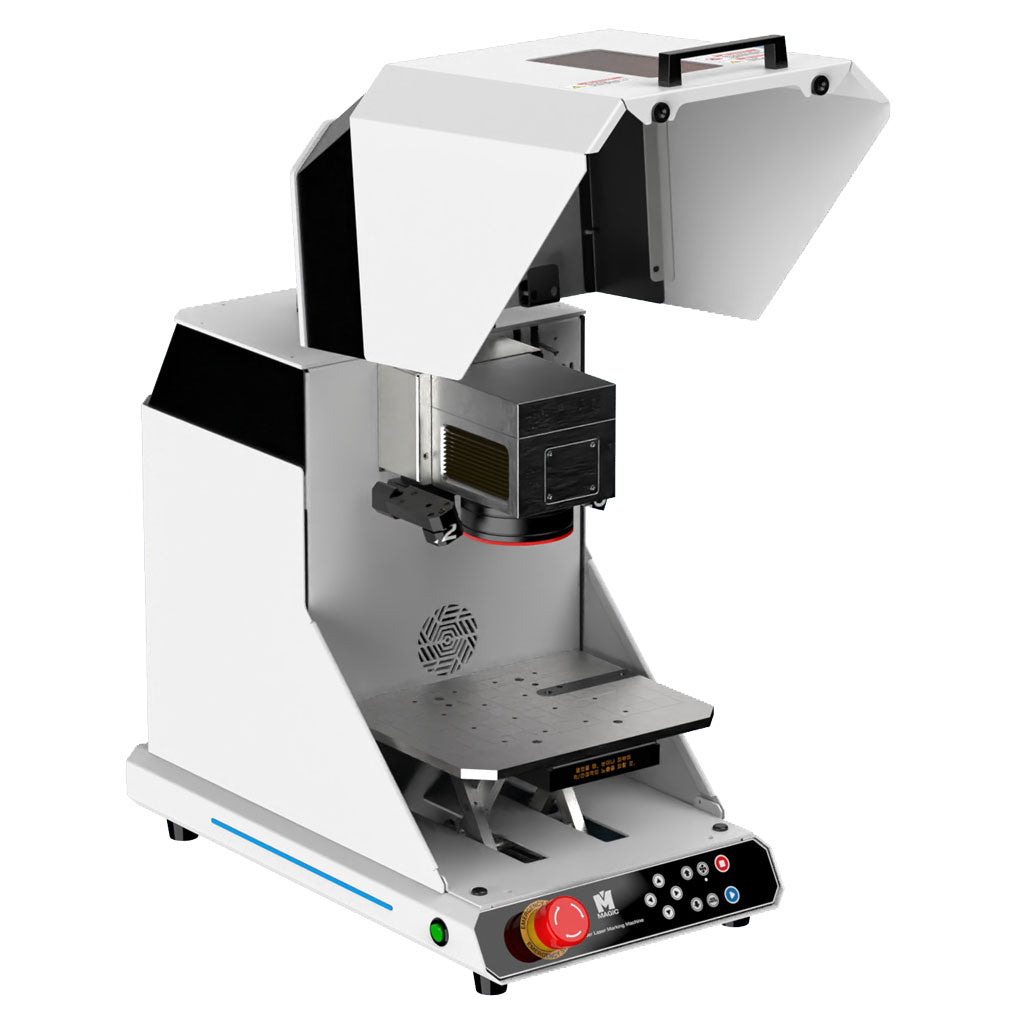

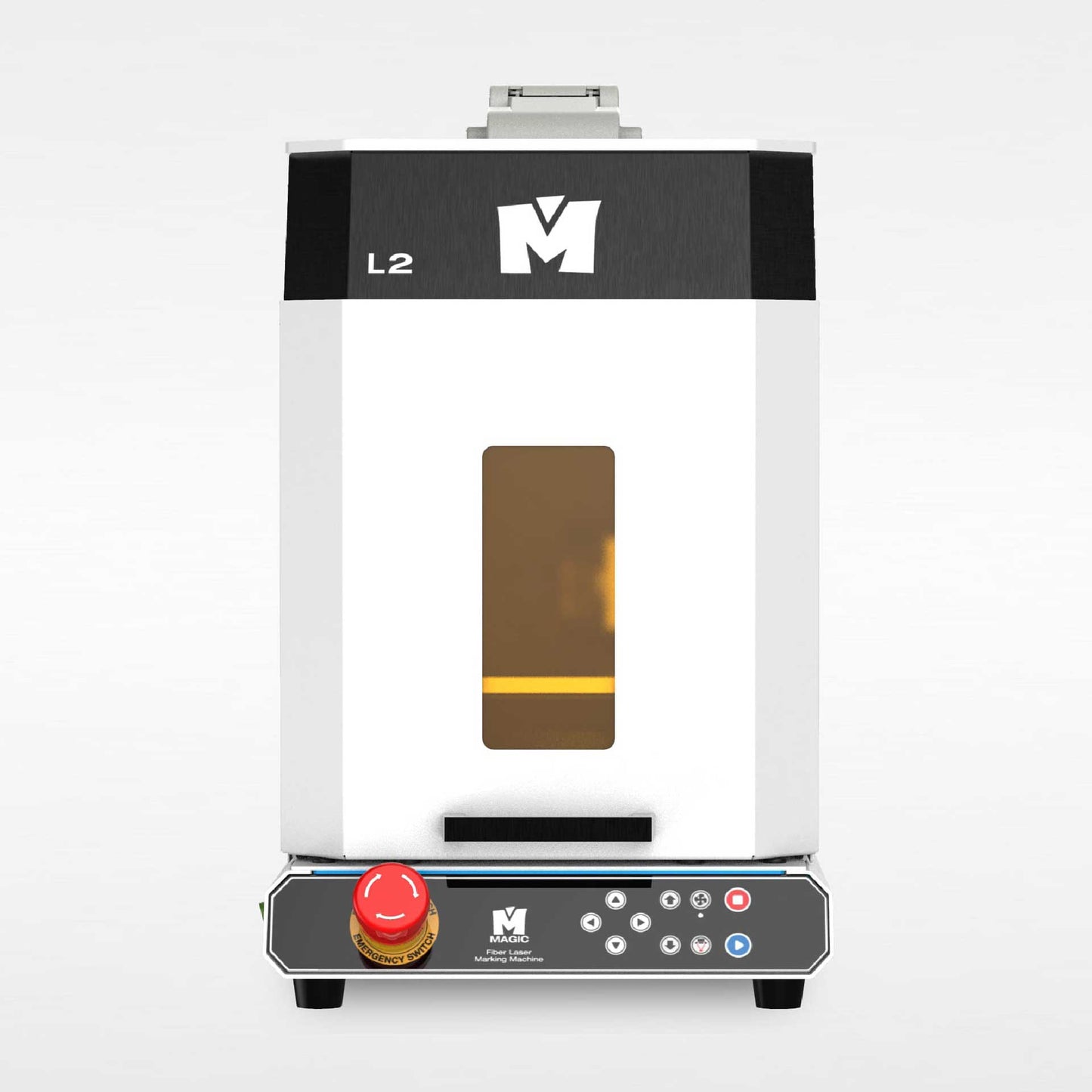

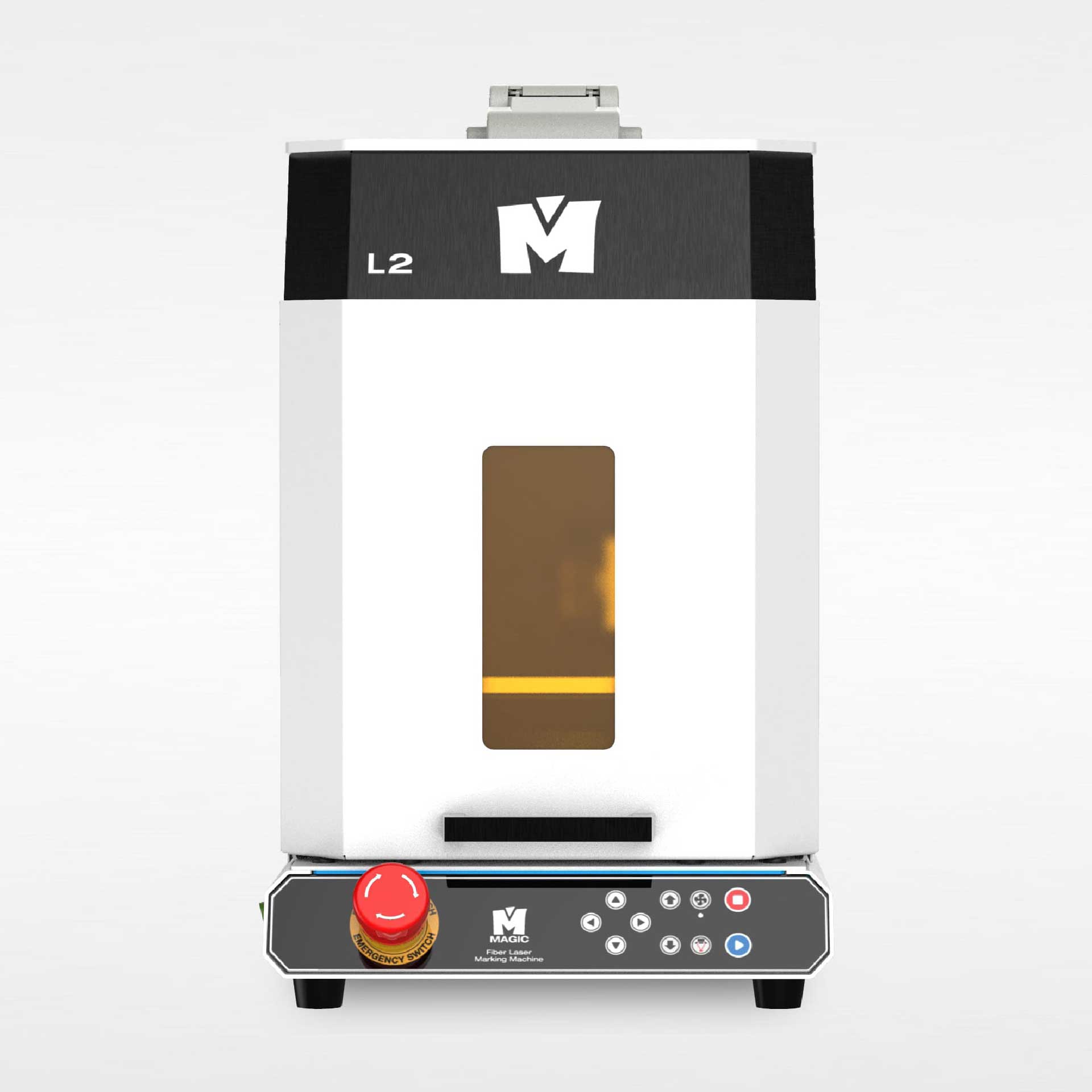

High-speed, high-precision L2 Fiber Laser for engraving writing, drawings and photos on nameplates, components, jewellery and objects.
30W laser power and MOPA technology!
Marking with black, grey and white shades
Color marking
Deep engraving
Cutting from sheet up to 1 mm thick

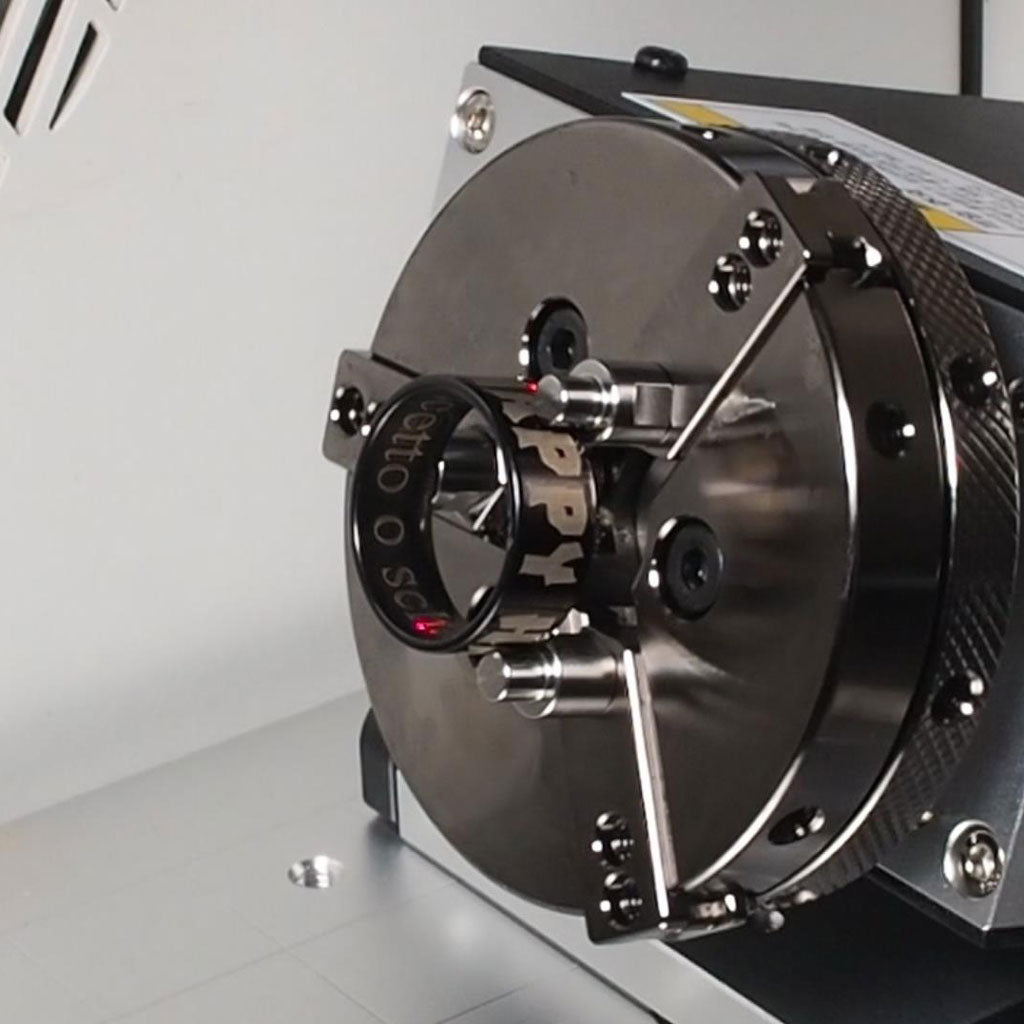

Marking and engraving of internal and external rings (requires optional ring clamp)
Marking and engraving along concave and convex curved surfaces
Wavelength 1064 nm, working area 85x85 mm. Overall dimensions 304x554x500 mm, weight 36 kg. Closing door. Consumption 290W.
Can be controlled via USB connection from a Windows computer, using the supplied software.
Reading of data to be engraved from CSV files, integrated remote control software, software operation even in the background to control the laser directly from the production management system.
On/off external suction system (the aspirator is optional).
Medal clamp, ring device, aspirator,... are all optional accessories.
