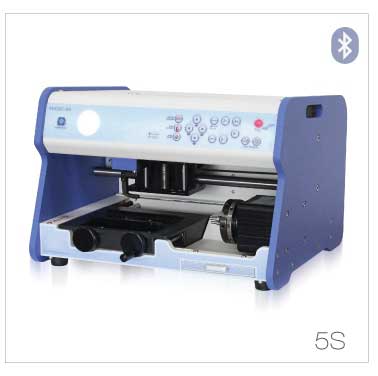

5S Jewelry Engraving Machine

5S Jewelry Engraving Machine

Regular price €3,950.00 EUR
Regular price Sale price €3,950.00 EUR
Sale Sold out
Shipping calculated at checkout.

Engraving machine written, drawings is photo on metal plates and objects. The machine engraves the inside and outside of rings thanks to the special device fixed to the side of the self-centering vice. The incision is made by scratching with a diamond. Automatic measurement of the surface to be engraved, engraving flat or on curved or irregular surfaces.

  • Working area 120x100x30 mm.
  • Ring inner diameter 14-40mm, outer diameter up to 40mm.
  • Overall dimensions 394x326x265 mm.
  • Weight 21 kg. Consumption 12W.
  • Windows software supplied to drive the machine from a PC via USB port
  • Possibility to control the machine with tablet (Optional) via Bluetooth

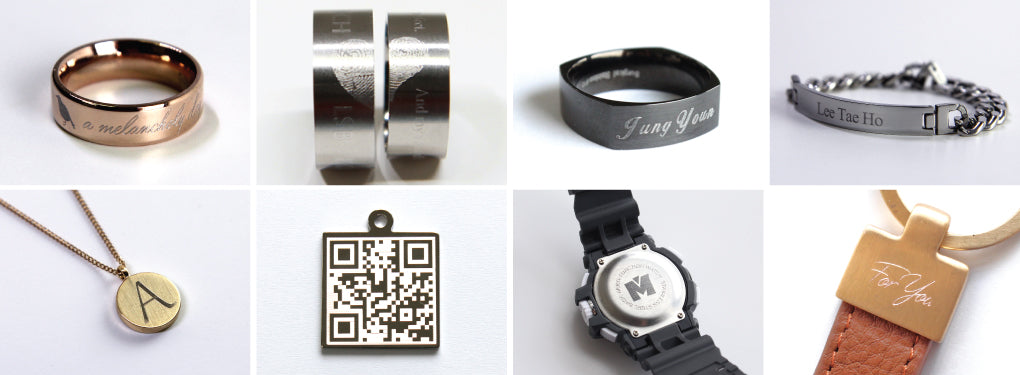

There 5S engraving machine it is perfect for personalizing jewels and costume jewelery, to customize the inside and outside of any ring, to engrave medals, tags or smartphone covers.
